8 channel RGB controller – car Christmas lights





1.             Introduction



This device is an 8 channel RGB controller provided as Christmas lights for a small Christmas tree (e.g. for use in a car or motor home). It provides control over 8 RGB strips (each containing max 9 RGB LEDs), i.e. color and dimming. This is achieved with 24 software PWM channels.


This circuit is based around the PIC24HJ128GP504 microcontroller. This chip is actually a small computer contained in a single chip, including RAM memory,  EEPROM, I/O ports, CPU and so on. When you buy this chip, it comes empty with no program on it. You have to compile the source code and download the resulting  machine code into it, using a PC and a small programmer attached to the PC and the chip. To get yourself familiar with this stuff, I suggest you first read this link: Getting started with microcontrollers.


Back to top


2.             Description


To control 8 RGB channels concerning intensity and color, 24 PWM channels are necessary. The PIC24HJ128GP504 does not have that many. Therefore we will use ordinary I/O ports and provide the PWM functionality by implementing it in software, using the Timer1 interrupt.

The device has as many as 32 programs to select the RGB pattern.


Back to top



3.             Usage



The device is operated with a single pushbutton, to select the program. The selected program number is shown on a simple binary display consisting of 5 LEDs.


When powered, program 0 is executed. Press the button to advance to the next program. Program 31 is a random combination of program 0 to program 30.


This is what is shown on the “display”:


            _ _ _ _ _      program 0

            _ _ _ _ X      program 1

            _ _ _ X _      program 2

            _ _ _ X X      program 3

            _ _ X _ _      program 4

            _ _ X _ X      program 5

            _ _ X X _      program 6

            _ _ X X X      program 7

            _ X _ _ _      program 8

            _ X _ _ X      program 9

            _ X _ X _      program 10

            _ X _ X X      program 11

            _ X X _ _      program 12

            _ X X _ X      program 13

            _ X X X _      program 14

            _ X X X X      program 15

            X _ _ _ _      program 16

            X _ _ _ X      program 17

            X _ _ X _      program 18

            X _ _ X X      program 19

            X _ X _ _      program 20

            X _ X _ X      program 21

            X _ X X _      program 22

            X _ X X X      program 23

            X X _ _ _      program 24

            X X _ _ X      program 25

            X X _ X _      program 26

            X X _ X X      program 27

            X X X _ _      program 28

            X X X _ X      program 29

            X X X X _      program 30

            X X X X X      program 31






Back to top



4.             Connection


Connect 8 RGB LED strips to the PCB, and connect a 12V DC power supply to the DC-in connector:




Below a picture of one LED strip, wounded as a spiral around a piece of PVC tube (diameter 16mm):

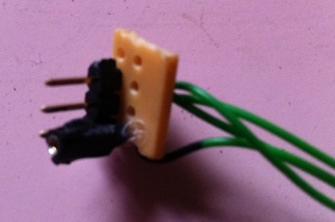

Notice that for connecting a LED strip to the PCB I designed my own type of connection. On the LED side, this is an L-shaped combination of 3 male and one female header, on the PCB side, it is an L-shaped combination of 3 female and one male header:



Back to top



5.             Schematic diagram

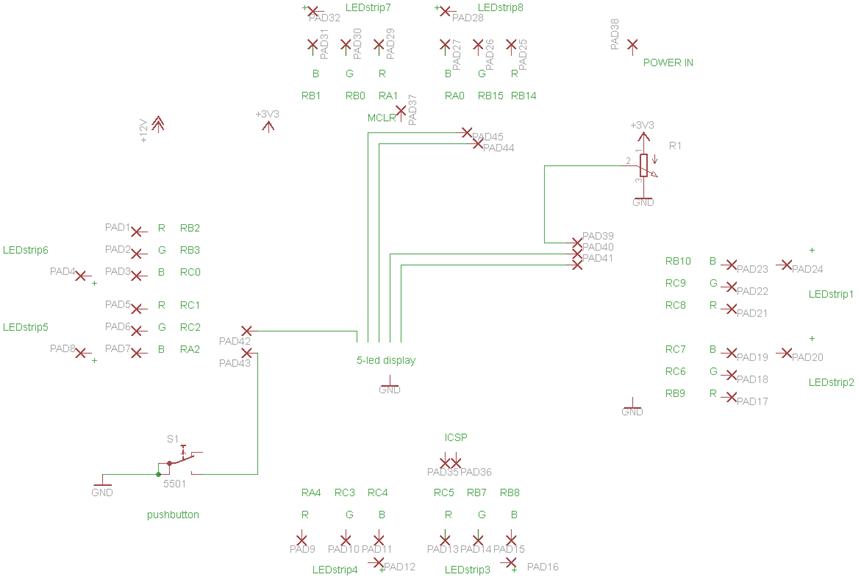

The main diagram:



List of components


Link to Eagle circuit



Below is a block diagram that shows how the 8 RGB LED strips, the button, 5-LED display and power are to be connected:




Link to Eagle circuit




This diagram shows the design of the user interface (button and LED display, only one of the two buttons is actually used):




Link to Eagle circuit





Back to top


6.             Explanation of the schematic diagram


(Refer to the main schematic diagram).


Two voltage regulators are used: one to produce a stable 12V for the LED strips, the other to produce 3.3V for the PIC.

The schematic shows 24 resistors and 24 transistors which drive the LEDs (8 channels x 3 for red, green, blue = 24 ports in total).

An ICSP (In Circuit Serial Programming) interface is provided by means of PAD35-36-37.

The 5-LED binary display connects to PAD40-41-42-44-45.

PAD39 is for future extension.

PAD43 connects to the pushbutton.

Back to top



7.             The printed circuit board


Main PCB


The pcb is designed for smd components.

It is double sided and designed with Eagle (from Cadsoft).

The PADs for the LED strips are supposed to hold headers which can be soldered on the PCB with or without drilling a hole.

Notice there is no space for the ICSP connector, this should just be a separate header connected with 5 wires to the correct PADs.




PDF file (top, mirrored) to print on a transparent: Print-layout

PDF file (bottom) to print on a transparent: Print-layout


Link to Eagle file brd file containing the PCB..




LED display PCB


This is a small PCB to fit the 5 LEDs for the binary display and the pushbutton. It is designed for SMD and single sided.




PDF file (mirrored) to print on a transparent: Print-layout


Link to Eagle file brd file containing the PCB..




Connectors PCB


This is just an aid to produce the connectors for the LED strips, it contains 8x 4 pads which must be drilled and fitted with headers. This PCB is single sided, non-SMD.



PDF file to print on a transparent: Print-layout


Link to Eagle file brd file containing the PCB..





Back to top



8.             The final device



Below some pictures of the final device.


The first version of the PCB looks a bit messy, because there were errors and patches had to be applied:





The PCB is put inside the flowerpot that comes with the Christmas tree:




The user interface, for the case I used an SD-card box:




The Christmas tree with the LED strips:




Back to top




9.             Programming



The software is written entirely in C (using the C30 compiler from Microchip).


The functions for the LED programs are called “program0()” to “program31()”. You could write your own versions of these functions to acquire your needs.

A “programXX()” function describes one iteration of a LED program. The main loop takes care of repeating so don’t repeat yourself.


If you want to write your own “programXX()” functions, the most important functions you might need are:


-       SetPwm(port, intensity) – sets the intensity of a port (0..23 where 0 = LED1 red, 1 = LED1 green, 2 = LED1 blue, 3 = LED2 red and so on) to a certain value (0..63 where 0 = 0% and 63 = 100%)

-       SetColor (ledNbr, color) – sets the color of a LED (1..8) to the specified RGB value (0xRRGGBB where RR, GG and BB are a hex value between 0..0xff).


You also will need the delay_ms() function. Use delay_ms() to delay a specified number of milliseconds. This function will return instantly when the button is pressed.

It is advisable to regularly check for the pushbutton being pressed inside your “programXX()” function, especially after a delay, in order to return instantly to the main loop for button processing. This can be done with “if (PUSHBUTTON == 0) return 0;”.


For programming you need the Microchip MPLAB X IDE and the C30 compiler. Both can be downloaded for free from the MPLAB X IDE site. You also need some programming hardware: the Microchip PICkit3 programmer.


Zip file containing all source code, header files and project files: Link to MPLAB project.


Connection to a PIC programmer.

PADs 35-36-37, ground and +3V3 should be connected (during programming) to the PICkit3 programmer (refer to the datasheets of both the PICkit3 and PIC24HJ128GP504 for proper connection).


Back to top
