Bug zapper

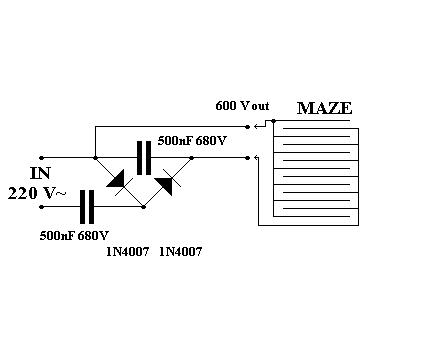

This device is for killing insects by electrocution. The maze can be made with two wires, not touching each other but with a distance of about 4 mm. You also have to add a TL light (UV-type) of 4 Watt to attract the insects. This light is best mounted in the middle of the maze. Click here if you want to build your own ballast for this type of light.
